BTY700 [ 返回 ]
-

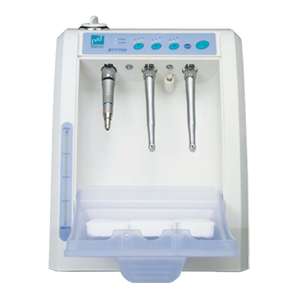

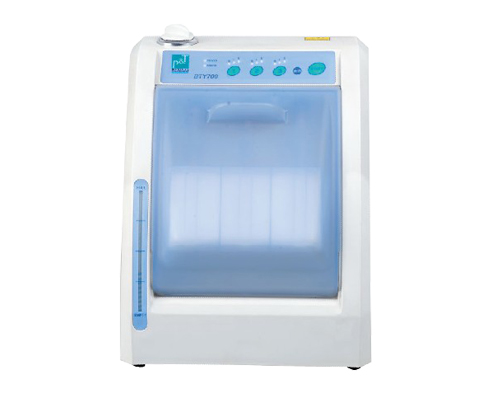

Handpiece Lubrication System
Functional Character:
□ This machine can clean and oil the parallel shank or bendinghandpiece accurately and easily at any time.
□ It have the character of high security,easily operating, easilycommandeering,and any person can operate it.
□ Three dental handpieces can be oiled and cleaned at the sametime.
□ Swing pinion of the BTY700 can effectively clean and oil the dentalhandpiece from different angles.
□ Having completed the procedure of the cleaning and oiling,theremained oil can be cleared by pressing the air key.
□ Different handpieces can be oiled by choosing the short mode.thelong mode, and the longer mode.
□ Oil mist filtration cotton can prevent the least diffusing of the oil mist.

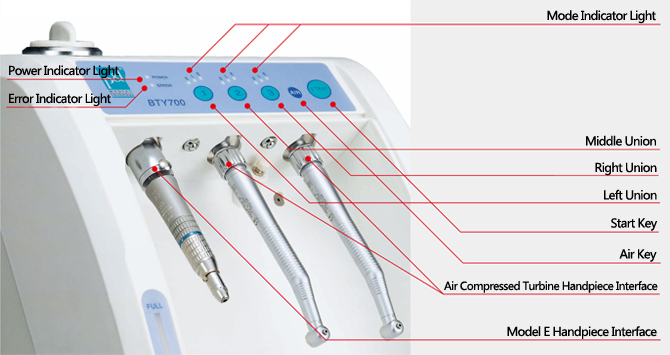

Mode Indicator Light:
Mode |
Style of handpiece |
Time of cleaning and oiling |
Time of cleaning |
Short Mode |
Air-compressed turbo handpiece |
Almost 35 Seconds |
Almost 60 Seconds |
Long Mode |
Bending handpiece |
Almost 45 Seconds |
Almost 80 Seconds |
Longer Mode |
Handpiece is alien to |
Almost 50 Seconds |
Almost 90 Seconds |
Parameters:
Voltage Rating and Frequency |
AC220V, 50~60Hz AC110V,60Hz |
Air Pressure |
0.35~0.60Mpa(3.5~6.0kgf/cm²)(50~80psi) |
Oil Tank Volume |
350 ml |
Overall Dimension(L×W×H) |
285mm × 355mm × 275mm |
Net Weight |
7.5kg |
